Products Name: 3.3KW car charger

Jurry 3.3kw car charger

Specification

Item		Specification
规格Spec	车载充电机类型Type	3.3KW
	机型Model	C3K31TFA	C3K31TFA	C3K31TFA	C3K31AFA	C3K31BFA	C3K31CFA	C3K3EFA
	额定输出电压 Output Voltage	48V	72V	96V	108V	144V	360V	540V
	充电模式 charging mode	Response model
输入Input	额定输入电压 Input voltage	220VAC(Also support 110V for choose)
	额定输入电压频率 Input voltage Frequency	46-65Hz
	启动冲击电流 Inrush current	≤16A
	输入功率因素 Input power factor	≥0.99（@220Vin,Pomax）
输出Output	额定输出功率 Output power	3.3KW
	输出电压范围 Range of output voltage	30-700V(depend on the battery )
	输出电流范围 Range of output current	0～50A	0～42A	0～30A	0～35A	0～20A	0～10A	0～6A
	稳压精度 Voltage regulation accuracy	≤1%
	电压纹波系数 Voltage ripple coefficient	≤1%
	稳流精度 Current regulation accuracy	≤5%
	输出响应时间 Output response time	≤5S
	典型效率 Typical efficiency	≥94%
	低压供电模块输出电压 Output voltage of low voltage module	12V±1V(Can be choosed)
	低压供电模块输出额定功率Output power of low voltage module	80W(Can be choosed)
	低压供电模块直流输出电压波纹系数 Output voltage ripple coefficien of low voltage module	≤1%
	工作噪声 Working noise	≤60dB
环境Environment	工作环境温度 Working temperature	-20～60℃
	存储温度 Storage temperature	-40～95℃
	湿度 humidity	5%～95% No condensation, no condensation
	IP等级 Level of IP	IP67(Not include fan)
	冷却功能 The cooling function	Air cooled
	通讯功能 Communication function	No CAN as default(Also can provide)
	充电功能 Charge function	Charge normally when receiving charge instruction ;If no command,the charger is in standby state
保护特性Protection	过压保护 Over voltage protection	Input side overvoltage shutdown can be self-recovery, output side overvoltage shutdown lock.
	欠压保护 Under voltage protection	Input side undervoltage shutdown can be self-recovery, output side undervoltage shutdown can be self-recovery
	短路保护 Short circuit protection	Output side short circuit shutdown, the charger can be self-recovery
	过温保护 Over temperature protection	When the heat sink temperature is higher than 75 ℃, the charger will reduce the output power. When the temperature is higher than 85 ℃, the charger will disconnect the circuit. When the charging temperature is lower than 75℃, the charger will restore the output
	反接保护Reverse connect protection	After the output terminal is connected inversely, the charger will give an alarm and work normally after right connection
	电位均衡和接地保护Equilibrium potential and ground protection	In the vehicle charger, the resistance between the conductive part that can be directly touched by the human body and the potential equilibrium point is no more than 0.1Ω. The grounding point of the vehicle charger should be marked clearly
	断电保护 Power-off protection	If the status is abnormal, cut off the power supply
安规Safety	介电强度 dielectricstrength	Primary - Secondary 3750 VAC \| Primary Secondary - Chassis 1500 VAC
	电气间隙和爬电距离Clearance and Creepage	Primary side - secondary side 4mm/6mm \| Primary side secondary side - case 2mm/3mm
	绝缘性能 Insulation performance	20MΩ
	谐波电流 Harmoniccurrent	Meet the requirements of 6.7.3.1 in GB17625.1-2003
可靠性Safety	耐振动性能 Vibration resistance	After the frequency sweep vibration test in the three directions of X, Y and Z, there is no damage to the parts and no loosening of the fasteners.
	耐冲击性能impact resistance performance	See the requirements of 6.5 in GB/T15139-1994
	耐工业溶剂性能Industrial solvent resistance	Metal parts have a good anti-corrosion layer
	防盐雾性能 Salt fog resistance	See GB/T 2423.17
	耐久性 Durability	Not less than the relevant provisions of GB/T 24347-2009
	电磁抗扰性Electromagnetic interference resistance	Meet the requirements of 11.3.1 in GB/T 18487.3
	电磁骚扰性Electromagnetic abusive	Meet the requirements of 11.3.2 in GB/T 18487.3
其他Other	Size	274214126mm
	weight	5Kg±0.3Kg

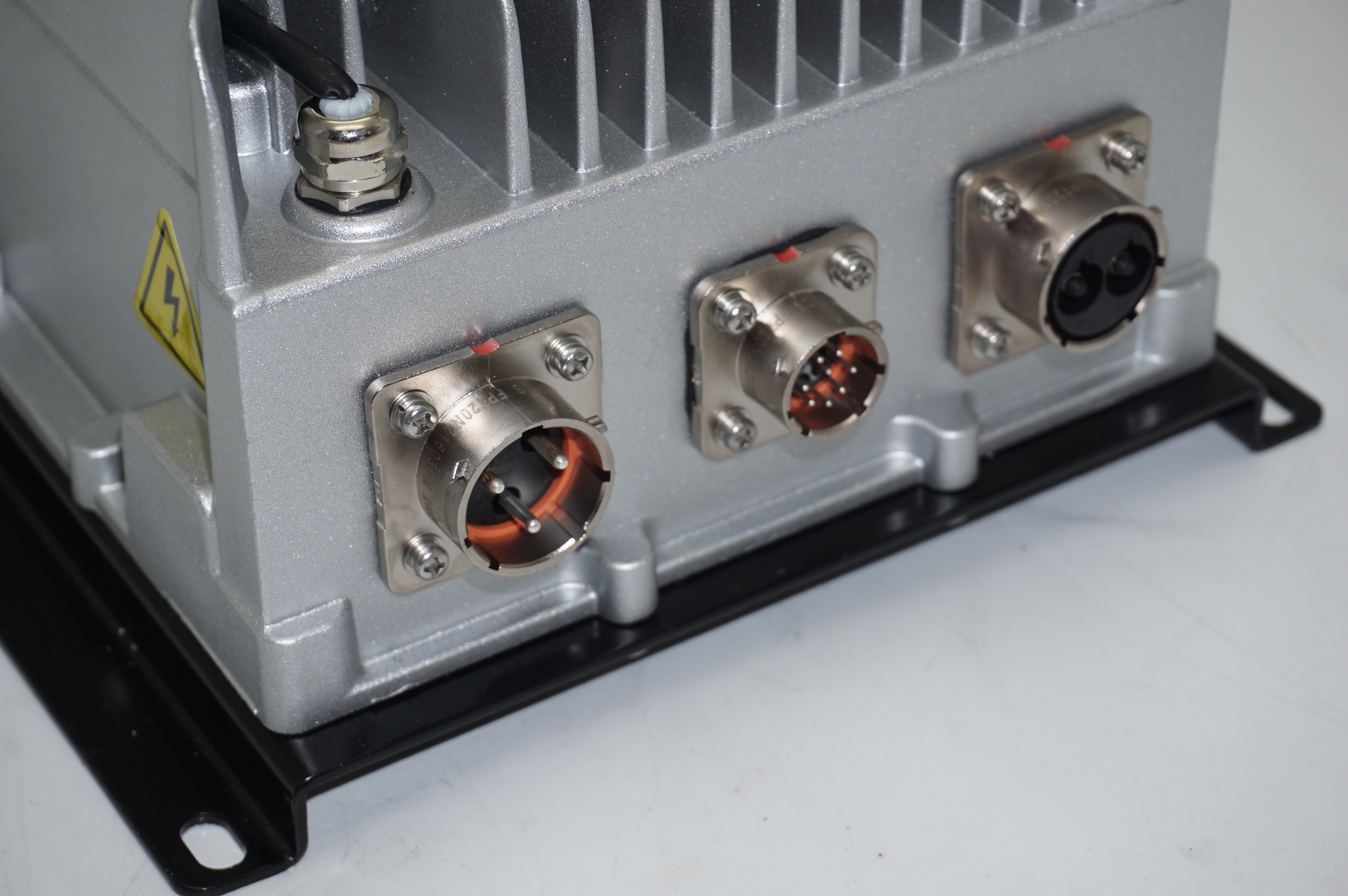

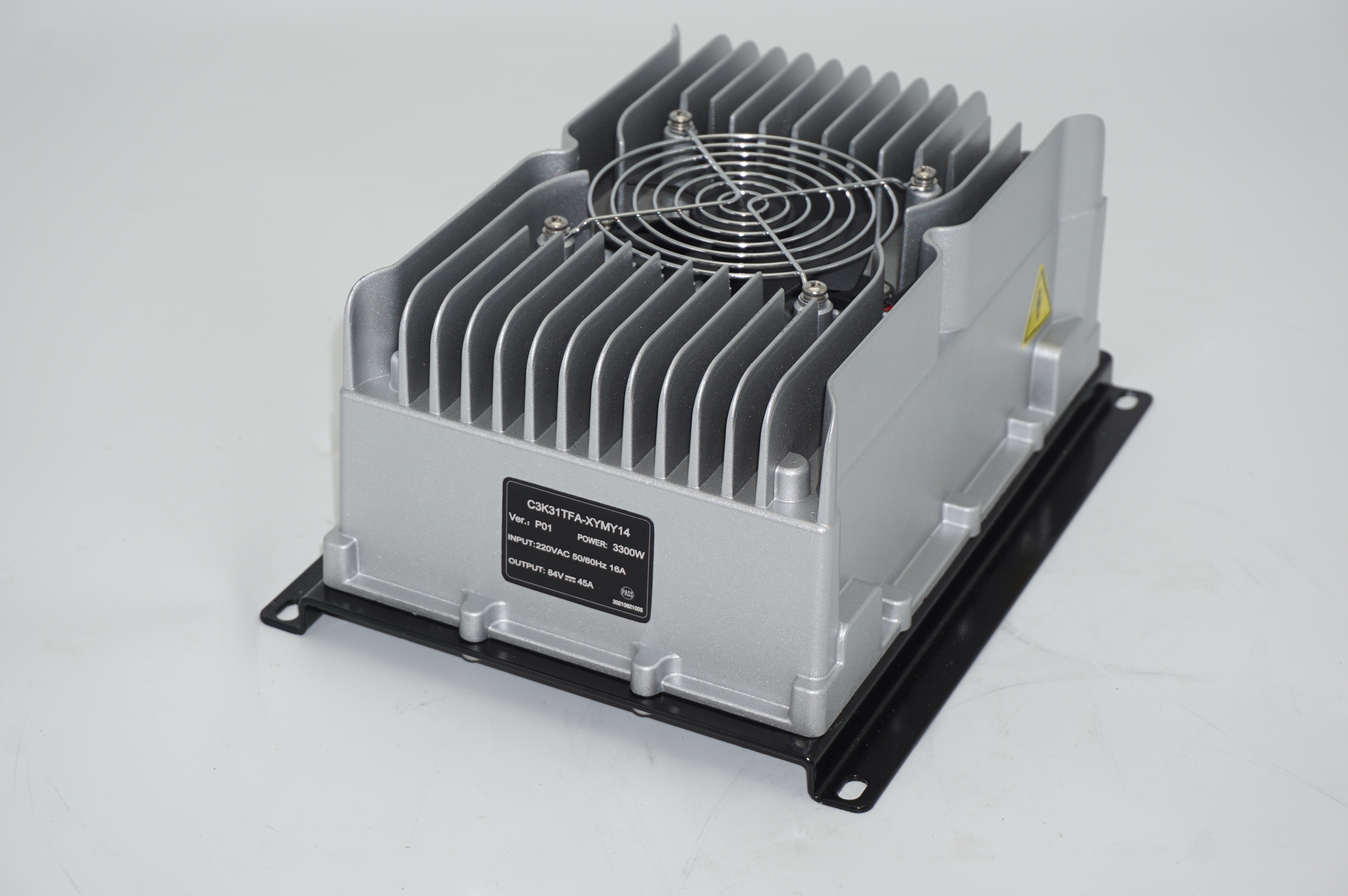

Pictures

Drawing
