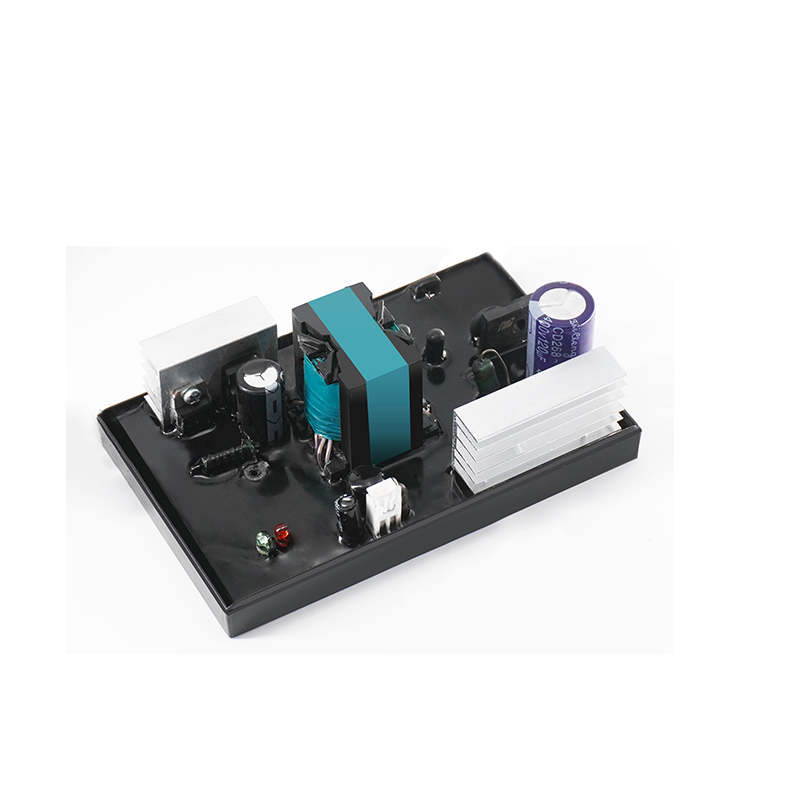

Products Name:  Intelligent three - stage charger

Product Features:

This product is a "bridge push-pull switching power supply technology", "sharp pulse charging technology", "soft-start technology" and a number of technical development of the three-stage charger. To solve the single-ended flyback switching power supply charger function, for lead-acid battery rechargeable battery premature aging problem, powerful long life and save energy. Accurate control of charging parameters to protect the lead-acid batteries to prevent over-current over-voltage charging to reduce the battery water loss and prolong battery life, thereby reducing vehicle use costs, built-in temperature compensation circuit can effectively control the charger internal temperature, Charger failure rate.

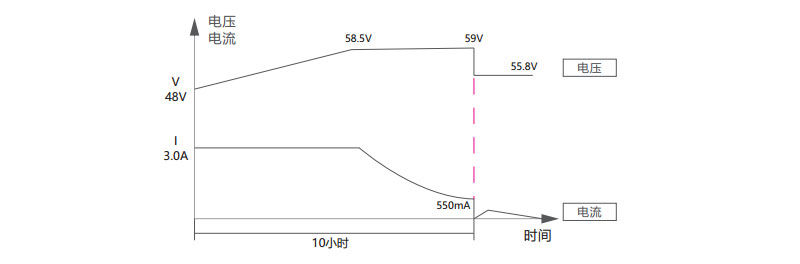

Graph:

Technical Parameters:

Model Power Floating phase voltage Floating phase voltage Constant voltage phase current The floating phase current
48V12Ah 110W 59.0

58.5

1.8 0.55
48V20Ah 180W 59.0 55.5 3.0 0.55
48V30Ah 270W 59.0 55.8 4.0 0.85
48V40Ah 295W 59.0 55.8 5.0 0.85
48V50Ah 355W 59.0 55.8 6.0 1.00
48V20Ah 225W 74.0 69.7 3.0 0.58
48V30Ah 300W 74.0 69.7 4.0 0.82
48V40Ah 370W 74.0 69.7 5.0 1.00
72V20Ah 270W 88.2 85.5 3.0 0.60
72V40Ah 445W 88.2 82.5 5.2 1.00
72V60Ah 700W 88.6 83.0 7.5 0.90
80V20Ah 295W 98.0 91.6 3.0 0.63
80V50Ah 700W 103.0 96.6 6.0 0.75
96V20Ah 320W 118.0 110.0 2.7 0.65

Note: 1. The output value according to customer needs a value.
